●全系列支持选配电容/电阻触摸屏
●全系列支持中英文字库，字库订制，图片存储
●全系列支持高速刷屏
●类似单色屏的操作模式能让用户轻松升级
超低价SPI/IIC接口液晶屏
|
产品名称
|
规格
|
尺寸
|
视域尺寸
|
外形尺寸
|
|
VS32240M35L
|
320x240 (4:3)
|
3.5寸
|
70.1x52.6mm
|
93.0 x70.0
|
|
VS48272M43L
|
480x272 (16:9)
|
4.3寸
|
95.0x53.9 mm
|
122.0x75.0
|
|
VS48272M50L
|
480x272 (16:9)
|
5.0寸
|
113.9x65.25 mm
|
136.1x84.2
|
|
VS80480M50L
|
800x480 (16:9)
|
5.0寸
|
113. 9x65.25 mm
|
136.1x84.2
|
|
VS80480M70L
|
800x480 (16:9)
|
7.0寸
|
154.0x85.9 mm
|
185.0x110.0
|
并口/SPI/FSMC接口液晶屏
|
产品名称
|
规格
|
尺寸
|
视域尺寸
|
外形尺寸
|
|
VS32240M35
|
320x240 (4:3)
|
3.5寸
|
70.1x52.6mm
|
93.0 x70.0
|
|
VS32240M35-2
|
320x240 (4:3)
|
3.5寸
|
70.1x52.6mm
|
93.0 x70.0
|
|
VS48272M43
|
480x272 (16:9)
|
4.3寸
|
95.0x53.9 mm
|
122.0x75.0
|
|
VS48272M43-2
|
480x272 (16:9)
|
4.3寸
|
95.0x53.9 mm
|
122.0x75.0
|
|
VS48272M50
|
480x272 (16:9)
|
5.0寸
|
113.9x65.25 mm
|
144.0x104.0
|
|
VS48272M50-2
|
480x272 (16:9)
|
5.0寸
|
113.9x65.25 mm
|
144.0x104.0
|
|
VS80480M50
|
800x480 (16:9)
|
5.0寸
|
113. 9x65.25 mm
|
144.0x104.0
|
|
VS80480M50-2
|
800x480 (16:9)
|
5.0寸
|
113. 9x65.25 mm
|
144.0x104.0
|
|
VS64480M56
|
640x480 (4:3)
|
5.6寸
|
112.9x84.7mm
|
144.0x110.0
|
|
VS80480M70
|
800x480 (16:9)
|
7.0寸
|
154.0x85.9 mm
|
185.0x110.0
|
|
VS80480M70-2
|
800x480 (16:9)
|
7.0寸
|
154.0x85.9 mm
|
185.0x110.0
|
|

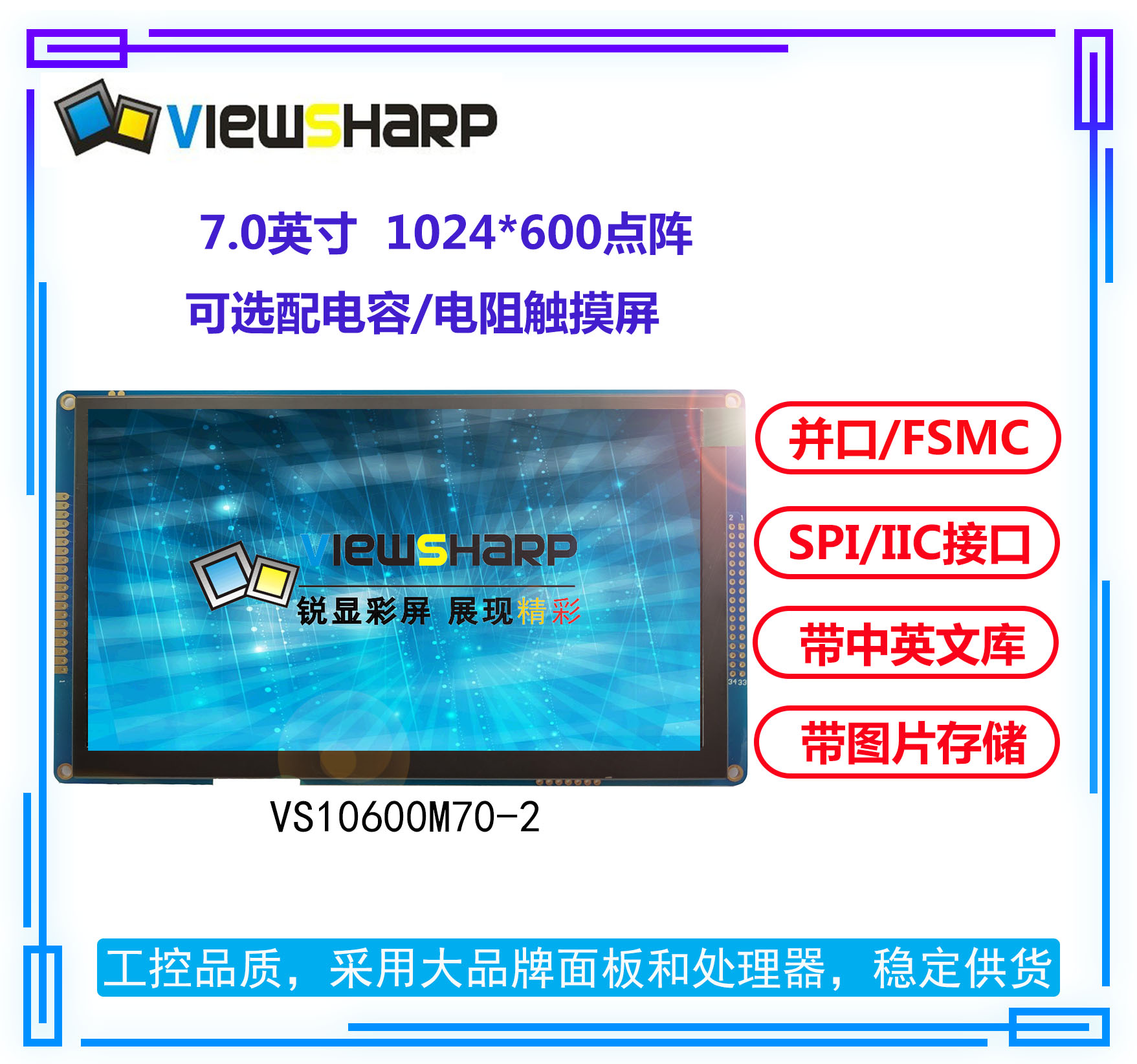

VS10600M70-2
|
1024x600 (16:9)
|
7.0寸
|
154.0x85.9 mm
|
185.0x110.0
|
|
VS80600M80-2
|
800x600 (4:3)
|
8.0寸
|
163.6x123.4mm
|
199.4x148.4
|
|
VS10600M102
|
1024x600 (16:9)
|
10.2寸
|
225.4x127.9 mm
|
257.8x148
|
VGA/HDMI液晶屏
|
VS80480V70
|
800x480 (16:9)
|
7寸
|
154.0x85.9 mm
|
185.0x110.0
|
|
VS10600V70
|
1024x600 (16:9)
|
7寸
|
154.0x85.9 mm
|
185.0x110.0
|
|
